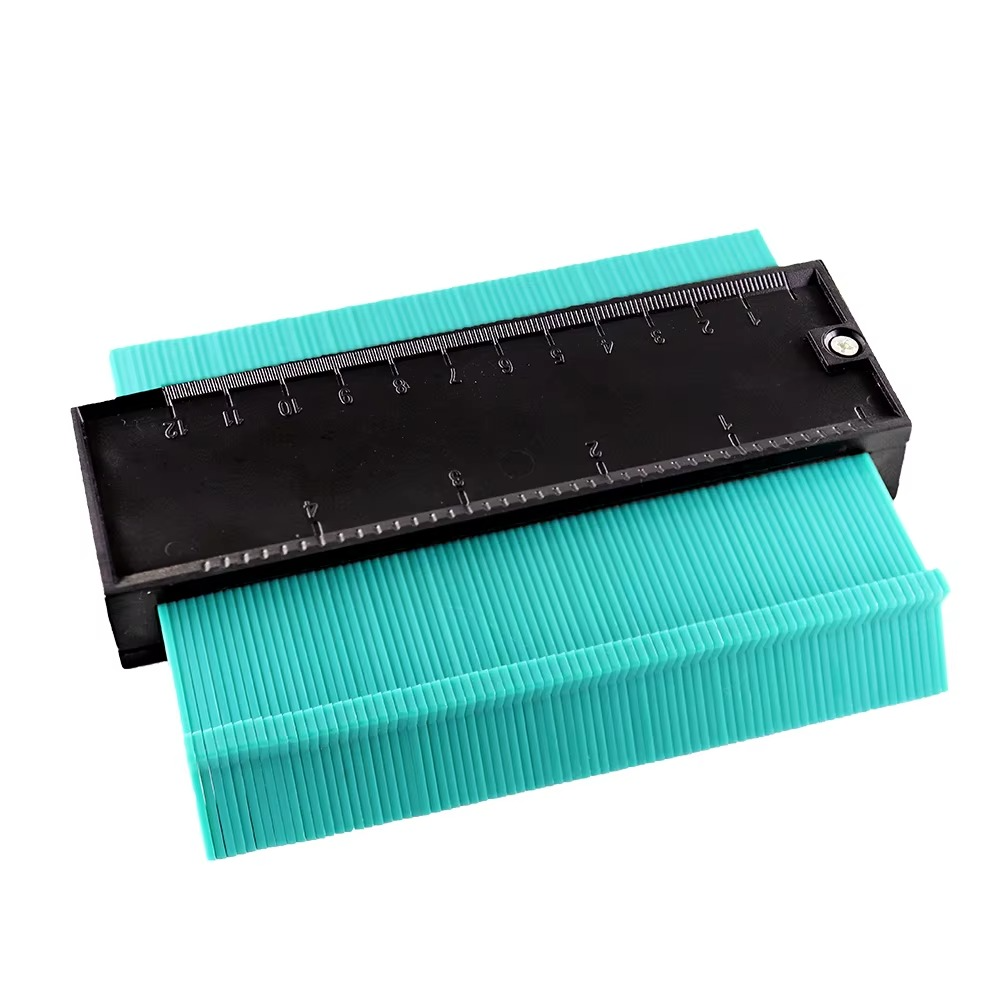

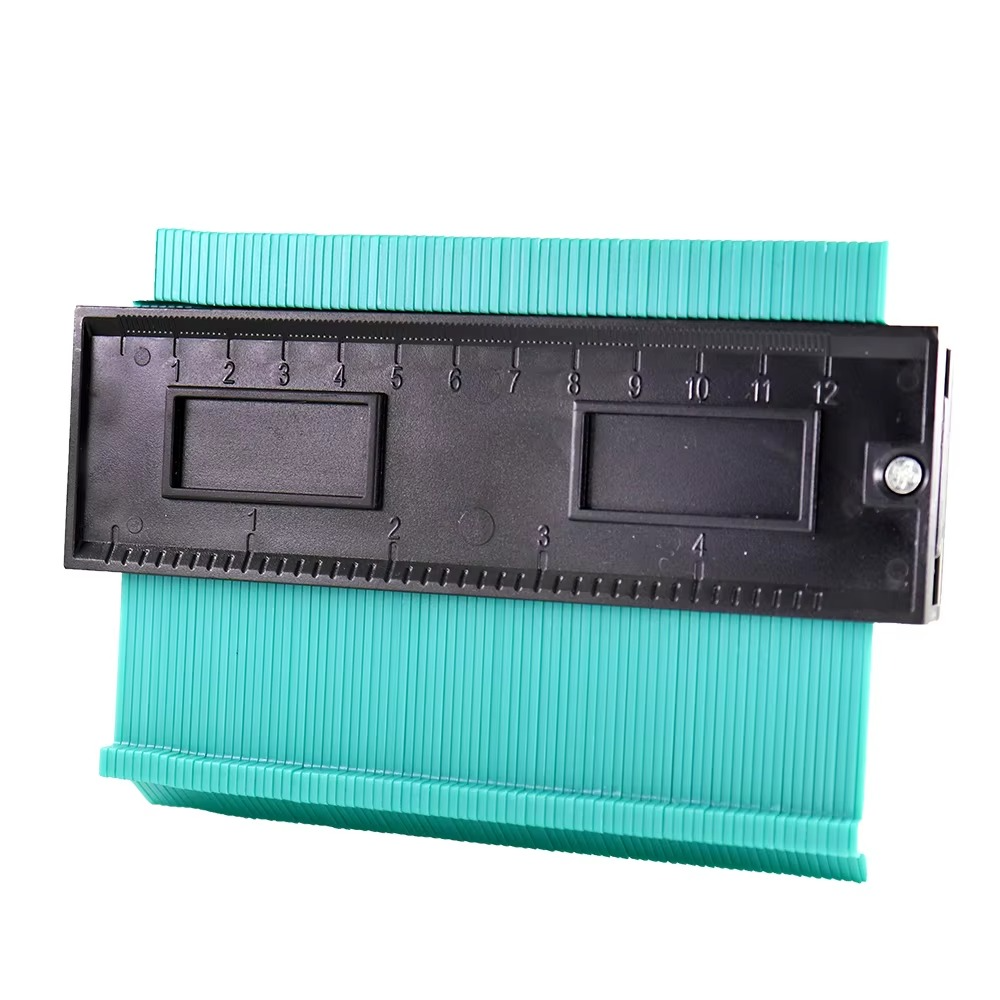

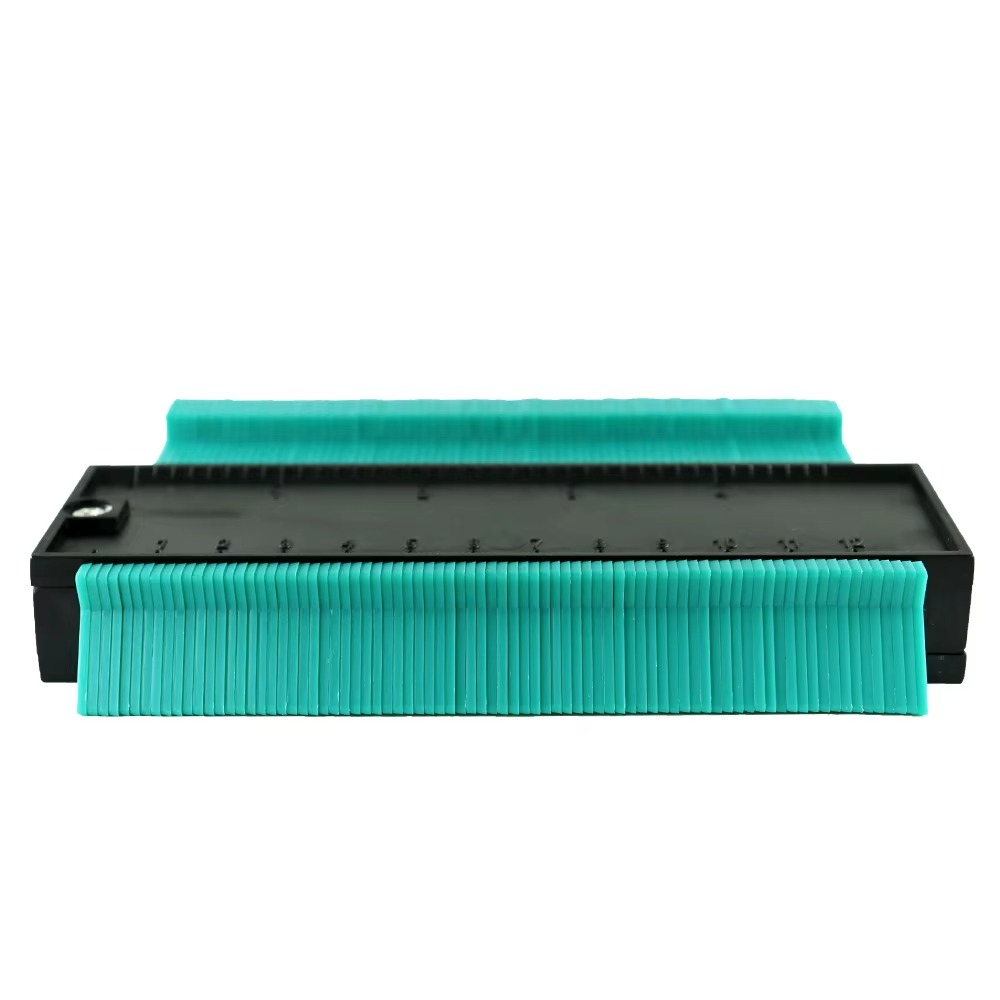

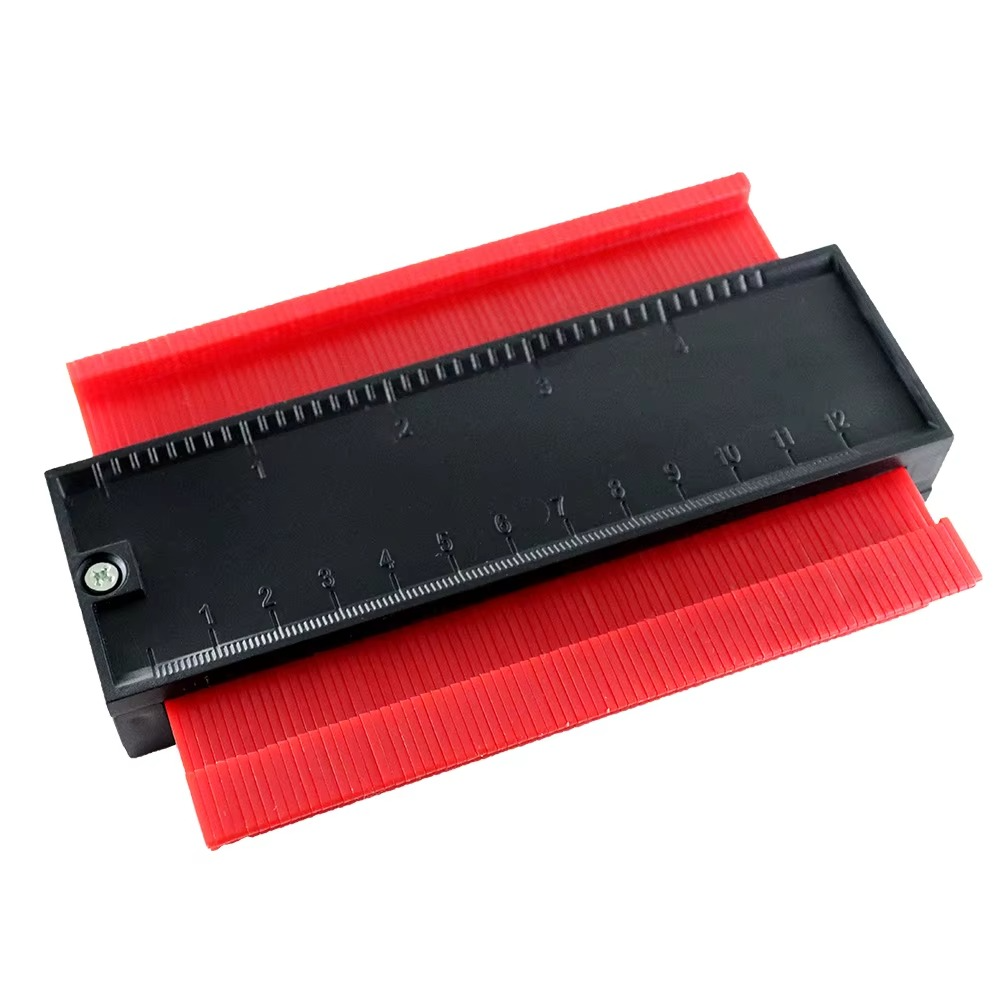

Tile and Wood Measuring Tool – Contour Profile Duplicator Gauge

Copy Curves, Corners, and Edges With This Contour Gauge

Transform your projects with precision using this innovative contour gauge. No more wasted materials or extended timelines—this tool allows you to trace corners, curves, and intricate edges seamlessly for all your flooring, trim work, or tiling endeavors.

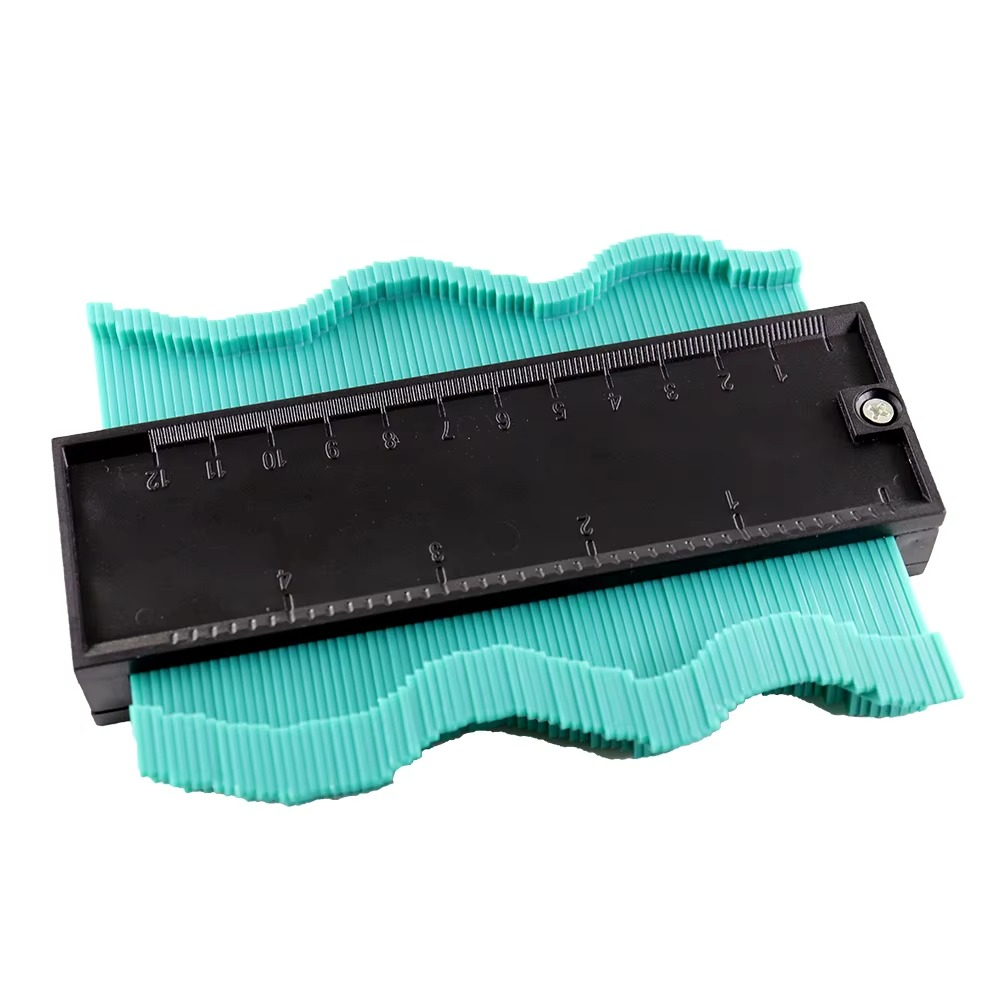

Designed to press flat against surfaces, this gauge features pins that adjust to match the profile of the area in front of them. Simply lift the tool and transfer the shape directly onto your material for an accurate cut, ensuring a perfect fit with minimal adjustments.

Crafted from durable ABS plastic, this tool is built for repeated use on various projects. The pins move effortlessly across a measuring range from 0 to 4.7 inches, enabling you to replicate both simple and complex profiles with ease. Its slim design ensures it fits conveniently into a tool bag or pocket.

This contour gauge excels in multiple applications, including woodworking, tiling, and general DIY tasks, eliminating the need for multiple tools during a single project. The extensive measuring range allows for capturing both detailed corner profiles and wider curves in one motion. Its sturdy ABS construction is made to endure the rigors of regular use.

• ABS PLASTIC BODY: Durable construction maintains its shape throughout repeated use on project surfaces.
• ZERO TO 4.7 INCH RANGE: Versatile measuring range accurately copies both tight corners and broader curved profiles.
• SMOOTH MOVING PINS: Pins easily shift and lock against any surface edge to capture the precise shape.
• INSTANT PROFILE TRANSFER: Effortlessly press, lift, and trace in one smooth motion without the need for additional measurements.
• SLIM TOOL BAG FIT: Compact design allows for easy storage in tool bags or apron pockets when not in use.
• MULTI PROJECT USE: Suitable for a variety of projects including tiling, flooring, woodworking, and trim work.
• MATERIAL WASTE REDUCTION: Designed to minimize waste during tiling, flooring, woodworking, and trim jobs.
• SIMPLE ONE STEP OPERATION: No setup or calibration is necessary—just press against the surface and trace.

Product Specifications

• Material: ABS Plastic
• Measuring Range: 0 to 4.7 Inches
• Function: Contour and Profile Copying
• Use: Tiling, Flooring, Woodworking, DIY
• Pin Movement: Smooth Adjusting
• Design: Slim, Portable
• Setup Required: None

What's Included

• 1 x Contour Gauge

Frequently Asked Questions

How do I use this contour gauge?
Press the gauge flat against a surface edge to allow the pins to adjust to the profile. Lift the tool, place it on your material, trace the shape, and cut along the line.

What materials and projects can I use this on?
This gauge is versatile enough for use in tiling, flooring, woodworking, trim work, and general DIY projects without the need for changing tools mid-job.

What is the maximum measuring range?
The pins span a complete range from zero to 4.7 inches, providing the capability to replicate both tight corner details and broader curves in a single action.

Will it hold up on a busy job site?
The robust ABS plastic body is designed to withstand repeated use on job sites and home projects while maintaining its shape.
